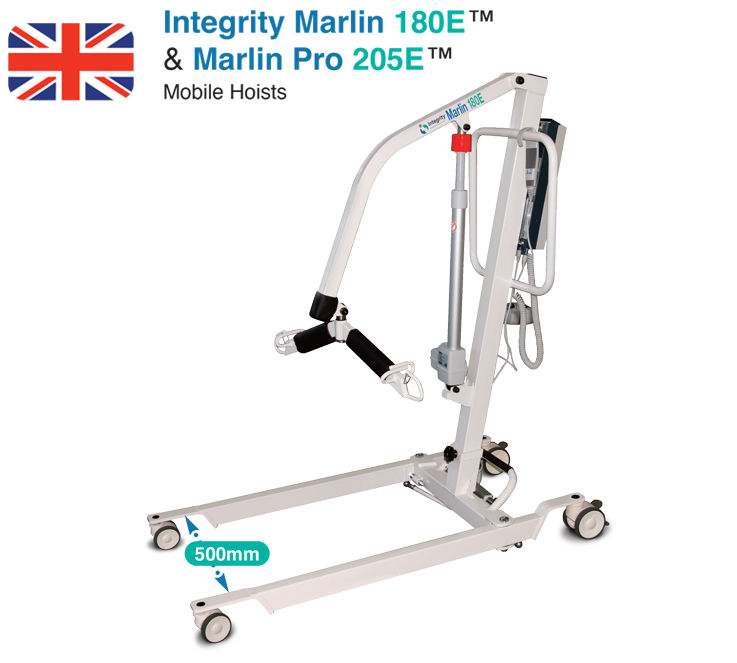

Integrity Marlin 180E™ & Marlin Pro 205E™ Mobile Hoists
The Marlin Range of mobile hoists can support the safe transfer of elderly or disabled people with limited mobility, the hoist design promotes single handed care. This user-friendly hoist reduces the risk and strain to caregivers by offering electric leg opening and a unique foot bar as standard, manufactured from high quality steel with a white powder coating finish ensuring they are easy to clean and are ideal for everyday use.
If you require any additional information, please telephone +44 (0)800 043 0050
Enquire about this product Download Brochure Here| Features | Benefits |
| Strong robust design | Durable powder coated frame, easy to clean, great to recycle |
| Electric leg opening as standard | Gives the carer greater control when positioning the hoist |

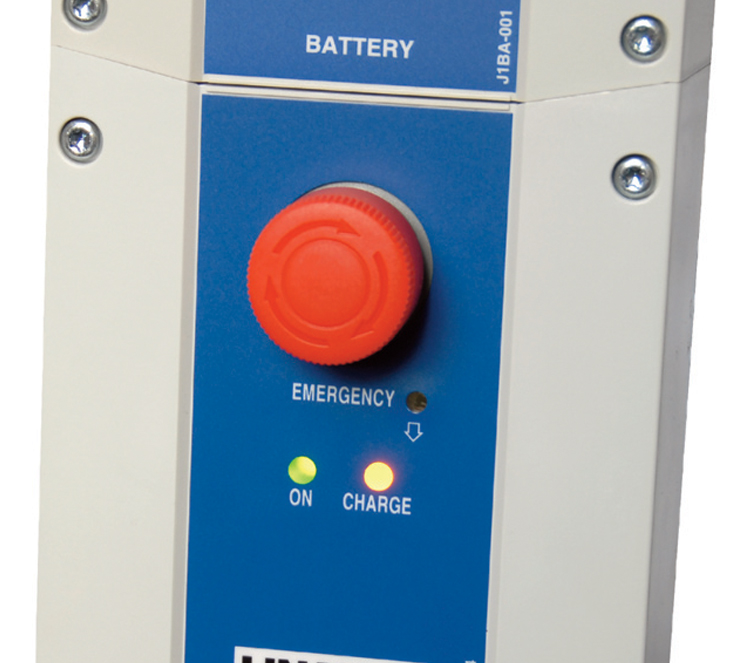

| Safety features | All hoists come with emergency manual lowering and easy to reach emergency stop button |

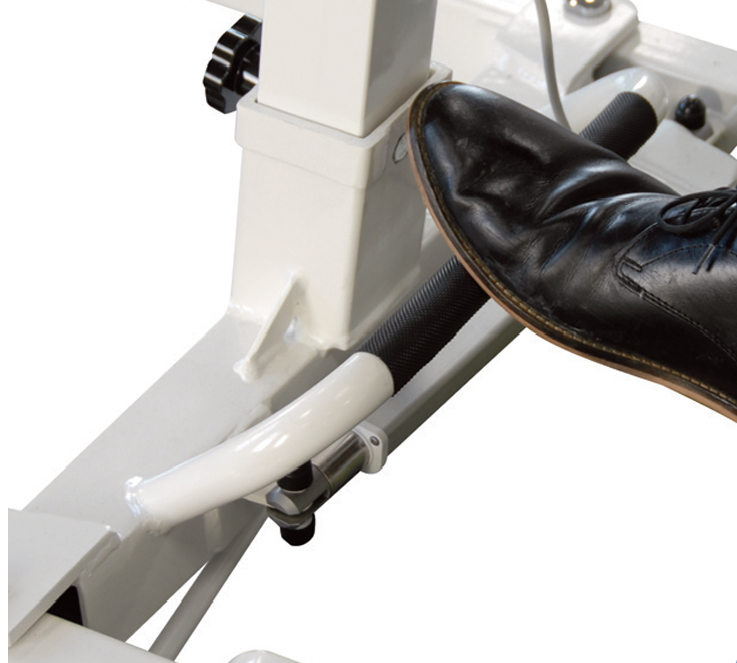

| Foot bar | The unique foot bar not only protects the actuator from accidental damage, it also assists the carer when positioning the hoist |

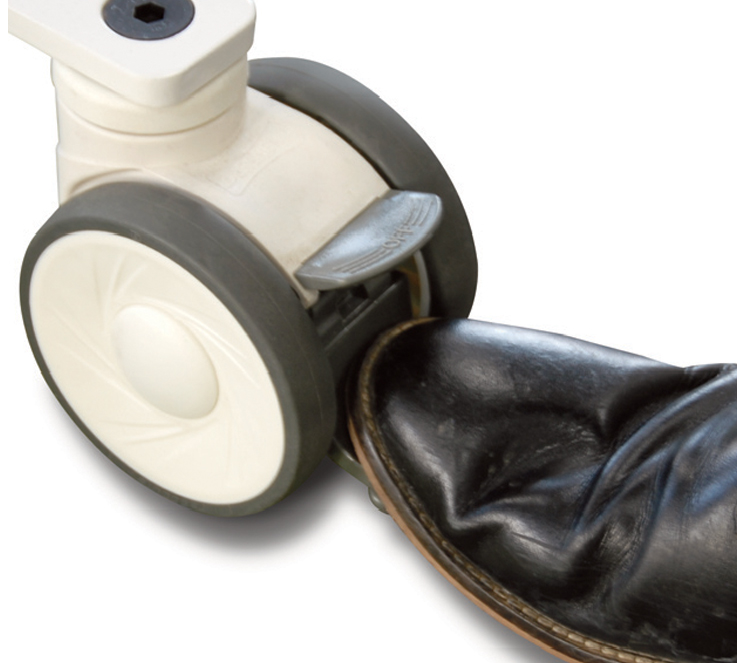

| Dual braked rear castors | Makes the hoist easier to manoeuvre and aids in the positioning of the device |
| Tool free assembly | Allows the hoist to be easily and quickly assembled, great for recycling or transporting |

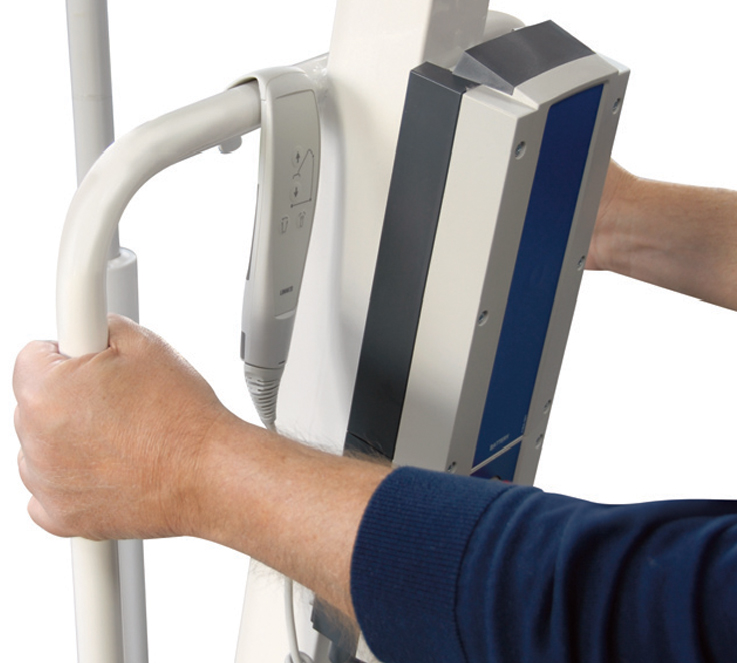

| Easy to position | The ergonomically designed handle ensures all carers can easily manoeuvre the hoist regardless of height or stature |
PRODUCT CODE – Marlin 180E -1001-10001 Marlin Pro 205E -1001-10003
| Sling Connection | Looped |
| Lift | 180E – Electric (Linak LA40 – 8kn) 205E – Electric (Linak LA44 – 10kn) |
| Leg Opening | Electric (Linak LA23 – 2.5kn) |

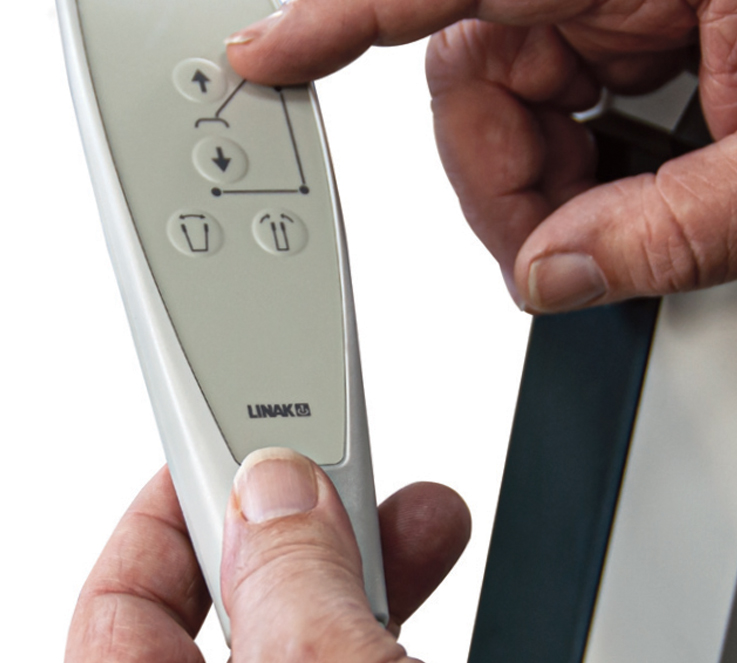

| Handset Controls | Wired Linak electric hook handset |
| Control Box | Standard (no screen) |
| Duty Cycle | 15% use, 85% rest |
| Battery | Linak 24 V SLA, 2.9 Ah |
| Charging Time | 8 hours |
| Lifts Per Charge | 30 |
| IP Rating (controls) | IPX4 |
| IP Rating (battery) | IPX5 |
| Material | Powder coated steel |
| Warranty | 5 years (excludes battery which is 1 year) |
